LED guage cluster install


Hello boys and girls

So.. you tired of looking at your old dull gauge cluster and you don't wanna go with one of those USDM tyte indiglo gauge layover setups??? well here is something for you that will cost you no more than 11 bucks with shipping. i seen this done on another forum and now i bring it to you guys and gals.

Tools/Material needed

5x 194 Led's ( your choice) http://www.superbrightleds.com/mini-wedge.html
( ALERT you don't need the 5th bulb... the gas light seem to have its own big ass bulb... also if you put a LED in the gas light, it will say on due to current flow)
rubber/vinyl gloves
Phillips screw driver
19mm socket
ratchet or breaker bar
----------------------------------------------------------------
1. this step is optional, but you can remove your wheel quickly to give yourself more room and also make it easier to remove your gauge cluster bezel without breaking it... 15 year old plastic is brittle.
http://img146.imageshack.us/img146/3...pim0216cv6.jpg

2.remove the following screws
http://img296.imageshack.us/img296/6...pim0217ei3.jpg

3.unhook those two clips by pulling downward on them ( excuse my birds nest, i got a chance to clean it up)
http://img186.imageshack.us/img186/1...pim0218ne2.jpg

4.In order to remove the bezel you must unhook the following devices
http://img243.imageshack.us/img243/3...pim0219ks5.jpg

http://img180.imageshack.us/img180/7...pim0220oj5.jpg

5.Remove these three screws to remove the cluster. once the screws are out, place you fingers around the upper portion of the cluster and pull down and toward you and cluster will pop out....... relax Heman's
http://img243.imageshack.us/img243/2...pim0221uh5.jpg

6.Unhook following connections to remove cluster
http://img244.imageshack.us/img244/7...pim0223lt4.jpg

7. Get your Led's ready to go. make sure you have gloves on at this point.
http://img151.imageshack.us/img151/3...pim0227fu9.jpg

8. Remove one at a time by twisting the connections clock-wise
http://img218.imageshack.us/img218/4...pim0224qb5.jpg
out with the old
http://img296.imageshack.us/img296/6...pim0229nv7.jpg
in with the new
http://img177.imageshack.us/img177/1...pim0230hj7.jpg

9. hook connections back up to cluster and test them.. if you see that you have a black out spot that means you have to take that led back out rotate it and re-insert it. they are not revers polarity. that means that the positive and negative nodes must match the led's respectively. once you got all power just reverse your steps from above and your done

:checkeredflag:

later on im going to personally take the other smaller lights ( gas, oil, etc) out and insert hyper white led's in them

results of your 20-30 min of labor

Before
http://img98.imageshack.us/img98/2153/khpim0212jw6.jpg

After ( Day time shots with different camera exposures)
http://img460.imageshack.us/img460/2...pim0248rr5.jpg

http://img168.imageshack.us/img168/9...pim0249rr8.jpg

http://img299.imageshack.us/img299/6...pim0252ut5.jpg

http://img131.imageshack.us/img131/3...pim0251xk4.jpg

http://img219.imageshack.us/img219/2...pim0255dd3.jpg

After ( Night time shot)
http://img489.imageshack.us/img489/8...pim0261sc6.jpg




http://img211.imageshack.us/img211/7771/coolaidaq5.png

Airman Jackson doin' it again!!!

Absolutely sick big brother, can't wait to see what you do next, that's absolutely beautiful.

-Stig

Nice, looks like they changed their blue LED's...I had some from them awhile ago and they were way too dark blue and killed my eyes, they look like they're easier on the eyes now

yea actually ha i wish it was darker lol i love how the jetta looks with its deep blue

The ones I had in my car from them were way too dark, a lot darker then the Jetta. It was so hard to see the damn things at night. This picture doesn't make them look too bad, but they were much darker in person

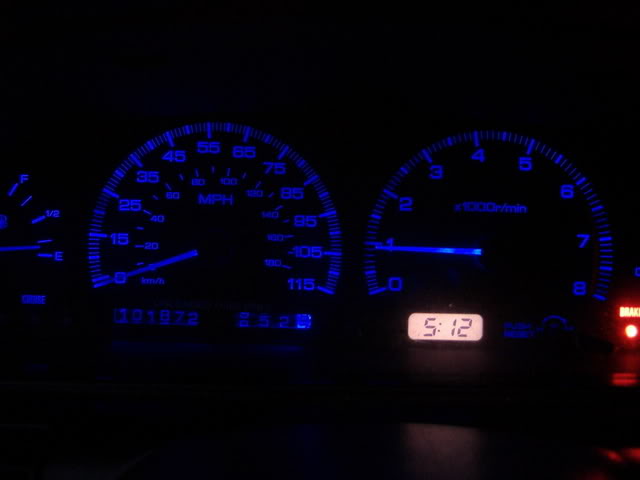

Attachment 21802

Actually have amber now
http://memimage.cardomain.net/member...18_87_full.jpg

damn that looks cool and guys if you are still on the fence about it.. here are members from other 240forums.

http://memimage.cardomain.net/member...18_71_full.jpg

http://nissaninfiniticlub.net/photop...C01288-med.jpg

http://i18.photobucket.com/albums/b1...z240/white.jpg

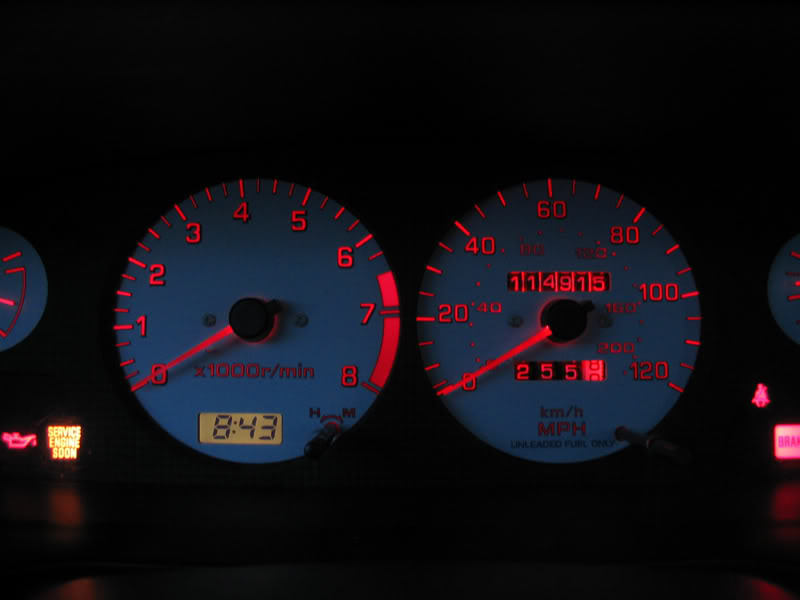

Attachment 21798

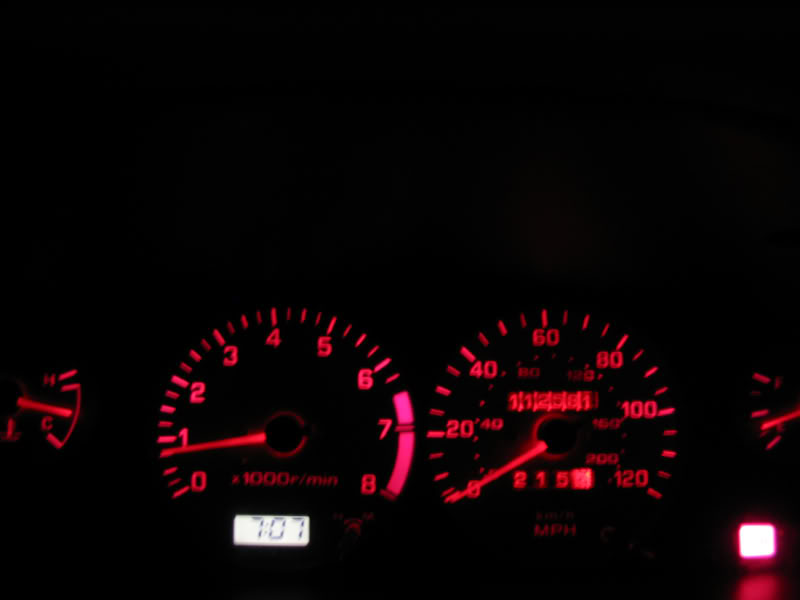

Attachment 21799

Attachment 21800

Attachment 21801

nice i might consider doing this to my s14 but not sure on the color

nice TL too lol the pearl while on the TL is the ****!

Man that is sick! They look, light and show up that good on camera during the day...they must really be bright at night. I need to do this and ditch my JDM tyte reverse glows! Excellent write-up with very nice pics to boot!:thumb:

thank you sir just giving back to the community lol

PS

check out those gas needles.. we can see who got the money and who don't LOL.

Hey, I swear I was going to fill up my tank right after I got done installing my LED's, LOL

Lol.............

Hey, I heard that constantly floating on "E" was baller status!Attachment 21782

I had those in my car for like 5 months now. They are some chinese crap that was supposed to be hyper white but really lights up purple. The other day the middle LED burned out. I need to find a place that sells good leds... anybody know of a place?

There's actually a film on the gauges that make most whites come out with a purplish tint, so whites can be kind of tricky...
