u guys remember me it ILLegal240 i forgot my pasword.but i was wondering if anybody has pics there fuel connections on a wet shot nitrous kit.please pst them up



Just tee into the hose between the fuel filter and the hardline that goes to the rail. I'll see if I can dig up a picture or two tomorrow.



i know about the t bone but jus wanted to see the setup so i have an i dea cuz every car is diff.but if u could get those pics up that would be great.thanks



you actually need a picture for this? wtf.



www.zex.com

ahhh.... feel the beauty of pdf diagrams....



i have a nx 75 shot kit. i will take pics and post them tomorrow. do you need a close up on the fuel connections?



ya that would be great nick.thankx im on a 50 dry shot but im gonna change the spark plugs,retard my timing,convert to wet.then go to 75 shot.i wanna go the safe way.and raine i jus want an idea of how they did there setup as in the solinoid mounting.



the coolest Nawz setup ive seen had a separte can and fuel pump, fill up the extra can with race gas and when the nawz switch is on... it uses a fuel pump for the race gas, not the reg gas in the car... sick ****



im in the middle of changing my colors to red. im going to try to post some pics one at a time

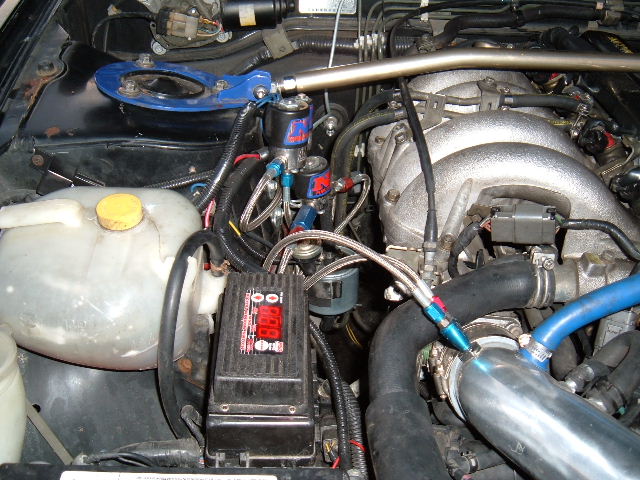

pic 1

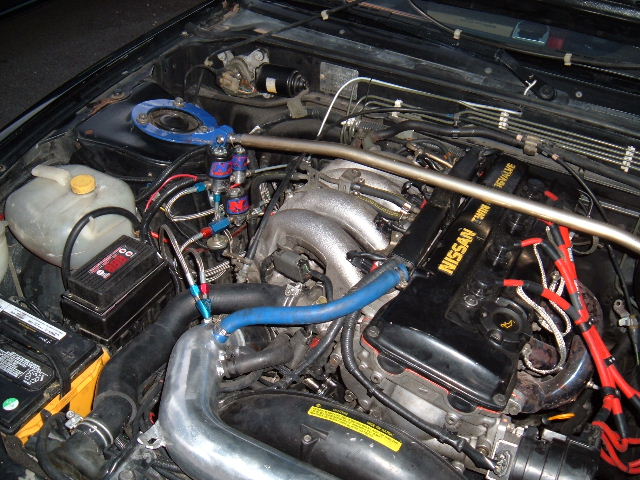

pic 2 (you can see the electronic box near the front of the pic, it allows you to set the rpms you want the nitrous to come on and off, because my kit is activated when you floor the gas pedal so you can have 75 shot every gear. and the purge valve you can see in the background that sprays over the windshield

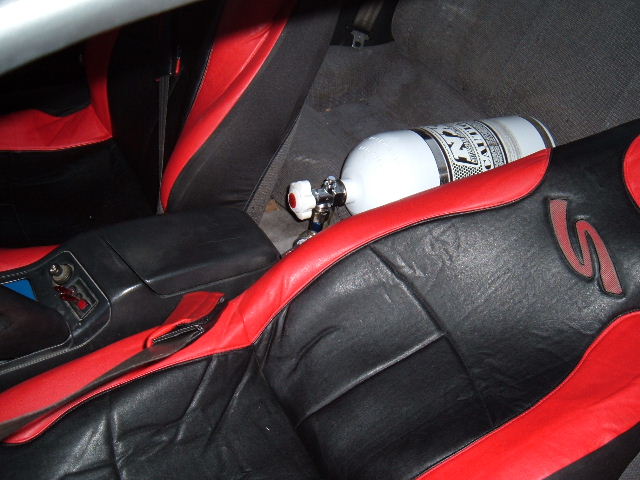

pic 3 (pic of the bottle and the switches, a purge button, on and off switch, and the heater switch)

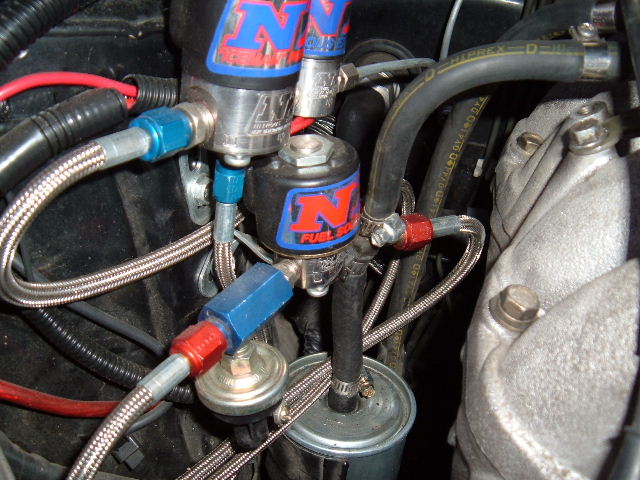

extra pic



well that explains it.



nice setup mines should be done.im gonna make a new thread on it with a vid.cuz i was on a 50 dry shot but my nitrous line started to hang from one place under the car and it rubbed against the ground then i was stop gettin ready to race my bros TL and boooommmmmm.the dam thing popped.but my nitrous line.the pressure guage.purge piece i needed will be here tuesday or wed. im gonna post some pics up in the new thread.thanks alot nick for ur help and time.
