Rear Sway Bar Install Pics...for the Noobs!!!

Old 03-31-2007, 01:20 PM
  #1
Contributing Member
Thread Starter

positron's Avatar

Join Date: Sep 2002
Location: Starkville, MS.
Posts: 1,192
Rear Sway Bar Install Pics...for the Noobs!!!

I took my stock swaybar off a couple of weeks ago when I installed some subframe spacers. The bushings were shot and one of the endlinks was bent so I got a new set of Energy Suspension D-bracket bushings and they came with some new swaybar endlink bushings. I was initially just going to upgrade to a bigger set of swaybars but since my front swaybar was incomplete(missing an endlink) and the rear had bad bushings and endlinks, I decided to just buy some new bushings and try the stock bars out at a couple of autocrosses and see how I like them at their full potential before deciding if I needed something better at my current skill level.

Tools needed-
Jackstands
Jack
Socket wrench
15mm socket
14mm wrench
Socket extension
Torque wrench
Name:  IMG_1015.jpg
Views: 102
Size:  81.6 KB
Here's the Energy Suspension bushing set, the new endlink with bushings and the old endlink.
Name:  IMG_1039.jpg
Views: 142
Size:  133.2 KB
Note the bent endlink
Name:  IMG_1025.jpg
Views: 82
Size:  63.4 KB
First thing you need to do is lube the swaybar and the D-bracket bushings up with the provided grease and slide them onto the swaybar.
Name:  IMG_1026.jpg
Views: 96
Size:  102.2 KB
Here's the new swaybar D-bracket bushing with the old bracket bushing. It was pretty soft compared to the new one.
Name:  IMG_1028.jpg
Views: 89
Size:  120.0 KB
Here's my stock swaybar(15mm yeah it's tiny). When I took it off it was all gunked up with grime so I cleaned it and gave it a fresh coat of black along with my D-brackets. They weren't bent so I re-used them.

First thing you do is of course jack up the car and place your jackstands under it.
Name:  IMG_1033.jpg
Views: 79
Size:  87.8 KB
Take the swaybar and slide it under the back of the car over the exhaust and just under the rear of the differential.
Name:  IMG_1034.jpg
Views: 117
Size:  63.3 KB
From there you take the swaybar and slide it forward to where the mounting points are.
Name:  IMG_1037.jpg
Views: 106
Size:  84.7 KB
Next, take the D-bracket and place it on the bushing...don't bolt them in yet but go ahead and slide them left or right to line them up with the mounting points.
Name:  IMG_1042.jpg
Views: 83
Size:  95.2 KB
Now you put the endlinks together in this order...washer-bushing-swaybar-bushing-washer-separator-washer-bushing-lower control arm-bushing-washer-top nut. It's like making a samich!
Name:  IMG_1041.jpg
Views: 79
Size:  93.6 KB
Name:  IMG_1045.jpg
Views: 83
Size:  106.1 KB
Name:  IMG_1046.jpg
Views: 169
Size:  107.6 KB
Name:  IMG_1048.jpg
Views: 88
Size:  111.2 KB
Name:  IMG_1047.jpg
Views: 81
Size:  87.0 KB
Name:  IMG_1049.jpg
Views: 83
Size:  78.6 KB
Name:  IMG_1050.jpg
Views: 88
Size:  78.0 KB
Name:  IMG_1051.jpg
Views: 133
Size:  99.4 KB

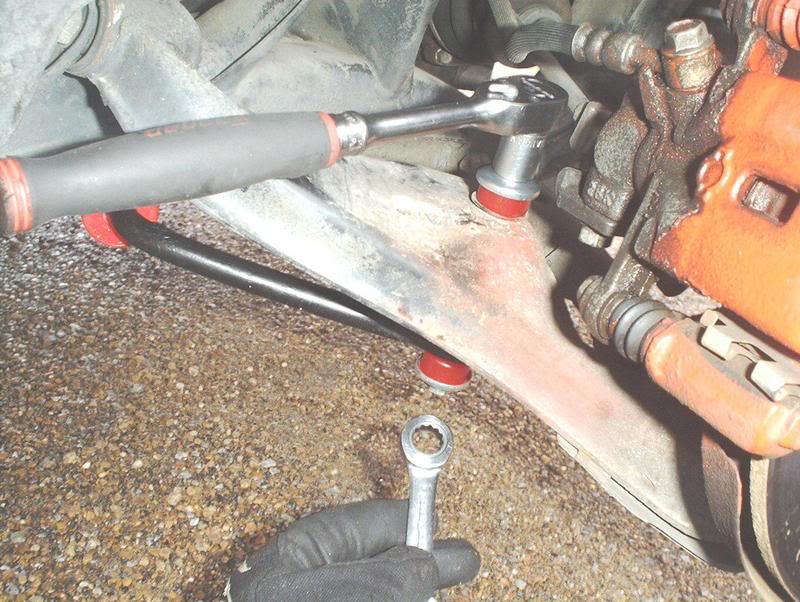

Next you tighten the link up with the 15mm socket for the top nut and use the 14mm wrench to keep it from spinning on the bottom.
Name:  IMG_1051.jpg
Views: 133
Size:  99.4 KB
Torque the links to 78-104ft. lbs.
Name:  IMG_1054.jpg
Views: 79
Size:  88.2 KB
Finished. Repeat on the other side.
Name:  IMG_1055.jpg
Views: 82
Size:  58.7 KB
Now you can tighten the D-bracket bolts down and torque them to 32-41ft. lbs.
Name:  IMG_1053.jpg
Views: 78
Size:  132.0 KB
Torque wrench
Name:  IMG_1056.jpg
Views: 87
Size:  87.4 KB
Done!
Attached Images
File Type: jpg
positron is offline
Old 04-16-2007, 09:42 PM
  #2
Contributing Member
iTrader: (2)

Biggamehit's Avatar

Join Date: Aug 2004
Location: Misawa, Japan
Posts: 5,091
once again great pics and write up , thanks you
Biggamehit is offline
Old 04-19-2007, 11:34 AM
  #3
Registered User

Join Date: Nov 2006
Location: Biloxi, Mississippi
Posts: 8
nice job man
