Camshaft Dyno Thread

Old 12-25-2007, 11:49 AM
  #1
Registered User
Thread Starter

Join Date: Jul 2007
Location: FL
Posts: 16
Camshaft Dyno Thread

This thread is not an E-***** Thread, it is mearly here to show the powerband differences between camshafts.


Up first (my bias showing through)

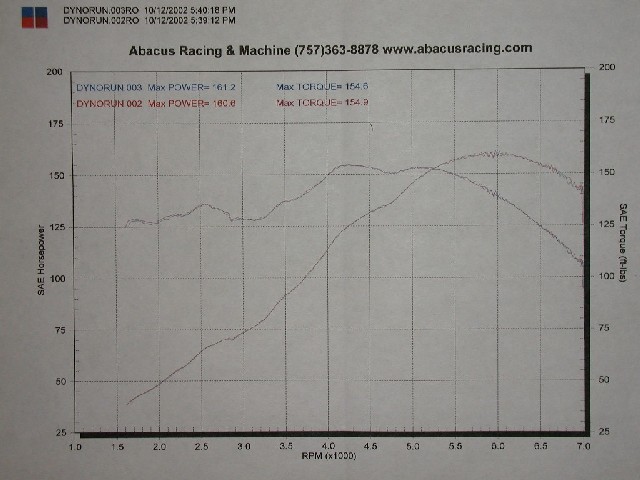

JWT camshafts:










Peak horsepower is made around 6000-6200rpm and peak Torque is around 4100-4200rpm
iceman00 is offline
Old 12-25-2007, 11:57 AM
  #2
Registered User
Thread Starter

Join Date: Jul 2007
Location: FL
Posts: 16
Factory Camshafts:

232/232 vs 248/232


232/232 vs 240/248


Altima with 248/248 cams
Name:  altimadyno.jpg
Views: 157
Size:  81.8 KB

Peak power is made around 5500-5800rpm range depending on setup.
iceman00 is offline
Old 12-25-2007, 06:54 PM
  #3
Registered User
iTrader: (2)

BigVinnie's Avatar

Join Date: Nov 2004
Location: Walnut Creek
Posts: 2,502
All those set ups use the stock maf none of them are going to show phenominal gains.

Personally my engine makes 162 WHP with the 240/248 with the N60 MAF. I can't wait till I get these cams that made 163 with no ecu tuning ot the use of theN60MAF.

Last edited by BigVinnie; 12-25-2007 at 07:05 PM.
BigVinnie is offline
Old 12-26-2007, 05:00 PM
  #4
Registered User
Thread Starter

Join Date: Jul 2007
Location: FL
Posts: 16
I Started to post more, but A.D.D kicked in like Vtec, and I was off doing something else. PDM list that they did infact do tuning on that motor after cam installs.
iceman00 is offline
Old 12-26-2007, 05:08 PM
  #5
Registered User
Thread Starter

Join Date: Jul 2007
Location: FL
Posts: 16
Copy and paste

DOHC Before Cams Dyno Sheet (intake, pulley, header, and tuning)
DOHC Stage II Cams Dyno Sheet (intake, pulley, header, and tuning)
iceman00 is offline
Old 12-27-2007, 07:59 PM
  #6
Registered User
iTrader: (2)

BigVinnie's Avatar

Join Date: Nov 2004
Location: Walnut Creek
Posts: 2,502
Originally Posted by iceman00 View Post
Copy and paste

DOHC Before Cams Dyno Sheet (intake, pulley, header, and tuning)
DOHC Stage II Cams Dyno Sheet (intake, pulley, header, and tuning)
Yeah your right I had to look at the page again.
Can't wait till I get them!!! Estimated power with the PDM cams is 185-190WHP. Who's willing to bet I can't make those numbers?
BigVinnie is offline
Old 12-27-2007, 09:37 PM
  #7
Contributing Member
iTrader: (1)

Join Date: Dec 2005
Location: kennewick wa.
Posts: 2,323
Originally Posted by BigVinnie View Post
Yeah your right I had to look at the page again.
Can't wait till I get them!!! Estimated power with the PDM cams is 185-190WHP. Who's willing to bet I can't make those numbers?
how much chp do you figure those numbers equate to?
jramosthe1st! is offline
Old 12-27-2007, 10:13 PM
  #8
Registered User
Thread Starter

Join Date: Jul 2007
Location: FL
Posts: 16
Originally Posted by BigVinnie View Post
Yeah your right I had to look at the page again.
Can't wait till I get them!!! Estimated power with the PDM cams is 185-190WHP. Who's willing to bet I can't make those numbers?
Sorry Vinny, JWT > PDM
iceman00 is offline
Old 12-28-2007, 01:26 PM
  #9
Registered User

Join Date: Feb 2004
Location: Raleigh, NC
Posts: 114
Which ones 232/232, and which is the 248/232... Id hope the blue is the 248/232.
nissandrift is offline
Old 12-28-2007, 08:17 PM
  #10
Registered User
iTrader: (2)

BigVinnie's Avatar

Join Date: Nov 2004
Location: Walnut Creek
Posts: 2,502
Originally Posted by iceman00 View Post
Sorry Vinny, JWT > PDM
What ever. PDMS are street legal and smogable, those JWT are border line brother. Granted I did see a 198WHP JWT camed KA I'm not doubting that they could possibly be better. I just know those PDMs will pass smog emissions.
BigVinnie is offline
Old 01-06-2008, 07:33 PM
  #11
Registered User
Thread Starter

Join Date: Jul 2007
Location: FL
Posts: 16
The S1 camshafts are smogable as well.
iceman00 is offline
Old 01-08-2008, 01:07 AM
  #12
Contributing Member

240-kid's Avatar

Join Date: Feb 2004
Location: Kaimuki, Hawai'i
Posts: 643
Originally Posted by nissandrift View Post
Which ones 232/232, and which is the 248/232... Id hope the blue is the 248/232.
Yes I believe Blue is 248/232
