Need Help!!!! Cam Timing Pic?
#1
Need Help!!!! Cam Timing Pic?
YES i just got my head finished .FULL hand ported gasket matched ka24de head.
ok heres whats going on i got the head on the car and every thing on but!!! i didnt mark the timing chain( i know i know i shouldve done this but i didnt soooo )can any out there plz show me a pic or drawing of the number of chain links from the upper timing chain is supposed to be assembled. im like a couple of links off and the engine studders and i dont want to bend a valve . plus the crappy 240 95 manual shows a half a$$ pic and can any 1 help!

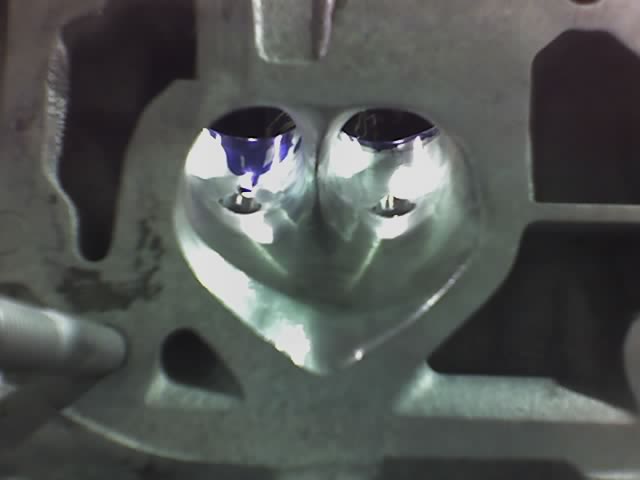

o and if your wondering what the head looks like i took pics-
[IMG]
http://i23.photobucket.com/albums/b3...cf61364be2.jpg[/IMG]
any help or hint would be great.
ok heres whats going on i got the head on the car and every thing on but!!! i didnt mark the timing chain( i know i know i shouldve done this but i didnt soooo )can any out there plz show me a pic or drawing of the number of chain links from the upper timing chain is supposed to be assembled. im like a couple of links off and the engine studders and i dont want to bend a valve . plus the crappy 240 95 manual shows a half a$$ pic and can any 1 help!
o and if your wondering what the head looks like i took pics-
[IMG]
http://i23.photobucket.com/albums/b3...cf61364be2.jpg[/IMG]
any help or hint would be great.
#6

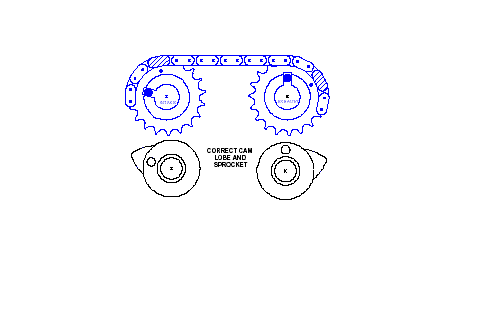

lol yea the first pic is from jim wolf and thats supposed to be the correct tdc cam timing .. but the second pic ummm dosnt look soo good cause that dot where the two cams connect to the chain isnt on a link its inbetween it. but yeah THNKS guys i marked the chain and every thing but i gotta get some more stuff this week befor i can get it running. ill post if it works.
